Fixed LED Display with simple cabinet
Weight:30kg/32.5kg/34kg /pc
Pixel Pitch Indoor: P2.5, P3, P4, P5, P3.9, P4.8
Key Features:
1.Front Maintenance
2.Led Module Magnet Design
3.High Flatness
4.Seamless Than 0.05mm
Both For Wall Mounted LED Display Project!
For the wall mounted application, there usually has limited space at the back of the module, so our W series is suitable for these wall mounted front service project.
Simple Cabinet Structure!
The cabinet is in simple steel cabinet design with magnets stick on.
Totally Front Maintenance!
LED Modules, power supply, receiving cardcan be taken out from front side.
Customized Size
Cost-effective
P2.5, P3,P3.9,4, P5, P6 available
High Precision And Magnetic Design!
LED module magnet design, easy for assembly and installation. High flatness and the seam is less than 0.05mm.
How To Assemble The LED Modules From The Front Side!
There are few steps to assemble the modules, you can assemble the modules one by one with ease.
Install the cabinet from front side!
Screws connect the connecting plate from front, reduce the distance gap between cabinet and wall perfectly.
Front maintenance Available!
With vacuum design, any module with magnetdesign can be took out from front side quickly, easily and safely.
Customized 90°Cabinet(Module is also 90°)!
For the 90 degrees corner LED display.

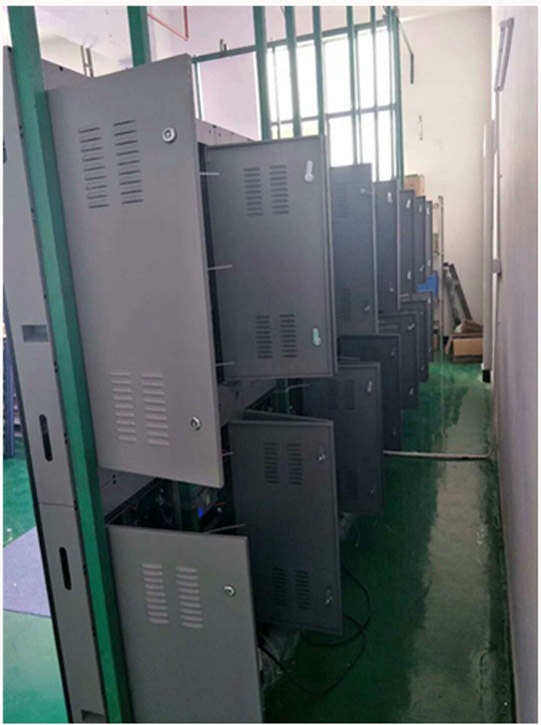

Back Door For Option!
For rear maintenance installation and safety protection.
Aging Test For Quality Control!
W series LED display will be in aging test for quality control. We guarantee the customer can use high quality LED display products.
Easy To Install For Applications!
W series is a LED display product which is very suitable for indoor wall mounted full front service. It’s widely to be used for the retail shop, store, shopping mall…
Indoor Application Wall Mounted Solution!
W series is also popular for the indoor fixed event like church LED display screen. It has high quality with competitive price.
Specs That Will Blow You Away!
| Specification | ||||||
| Model NO. | W2.5 | W3 | W4 | W5 | W3.9 | W4.8 |
| Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | 3.91mm | 4.81mm |
| LED Type | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 160mmx160mm | 192mmx192mm | 256mmx128mm | 320mmx160mm | 250mmx250mm | 250mmx250mm |
| Resolution of module(W*H) | 64x64dots | 64x64dots | 64x32dots | 64x32dots | 64x64dots | 52x52dots |
| Density | 160,000dots/㎡ | 111,111dots/㎡ | 62,500dots/㎡ | 40,000dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ |
| Cabinet material | Steel | |||||
| Size of cabinet(W*H) | 960x960x100mm | 960x960x100mm | 1024x1024x100mm | 960x960x100mm | 1000x1000x100mm | 1000x1000x100mm |
| Weight of cabinet | 30kg | 30kg | 34kg | 30kg | 32.5Kg | 32.5Kg |
| Best viewing distance | >2.5m | >3m | >4m | >5m | >4m | >5m |
| Best viewing angle | 140° | 140° | 140° | 140° | 140° | 140° |
| Brightness | ≥800cd/㎡ | ≥1000cd/㎡ | ≥1200cd/㎡ | ≥1200cd/㎡ | ≥1200cd/㎡ | ≥1200cd/㎡ |
| Maximum power consumption | 550W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 180W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/16 scanning | 1/16 scanning | 1/8 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz |
| IP grade | IP40 | IP40 | IP40 | IP40 | IP40 | IP40 |
| Colors | 16777216 | |||||
| Color temperature | 6500-9500k | |||||
| Driving device | Constant current | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | —20℃~50℃±10% | |||||
| MTBF | >10,000 hours | |||||
| Frame frequency | 60Hz | |||||
| Life Span | 100,000 hours | |||||
