70% Ultra Transparent LED Display
Weight: 6.5kg/5.5kg/5kg /Pc
Pixel Pitch Indoor: P3.9, P7.8, P10.4
Pixel Pitch Outdoor:
Key Features:
1.White And Black Panel For Option
2.High Transparency
3.Easy Setup And Installations
4.Thin & Light 15kg/m2
5.Non-Steel Structure
6.High Definition
7.130° Viewing Angle
Light Weight Transparent LED Display Screen!
The transparent rate can be up to 70%, and the weight is only 7.5kg for each 1000x1000mm cabinet.

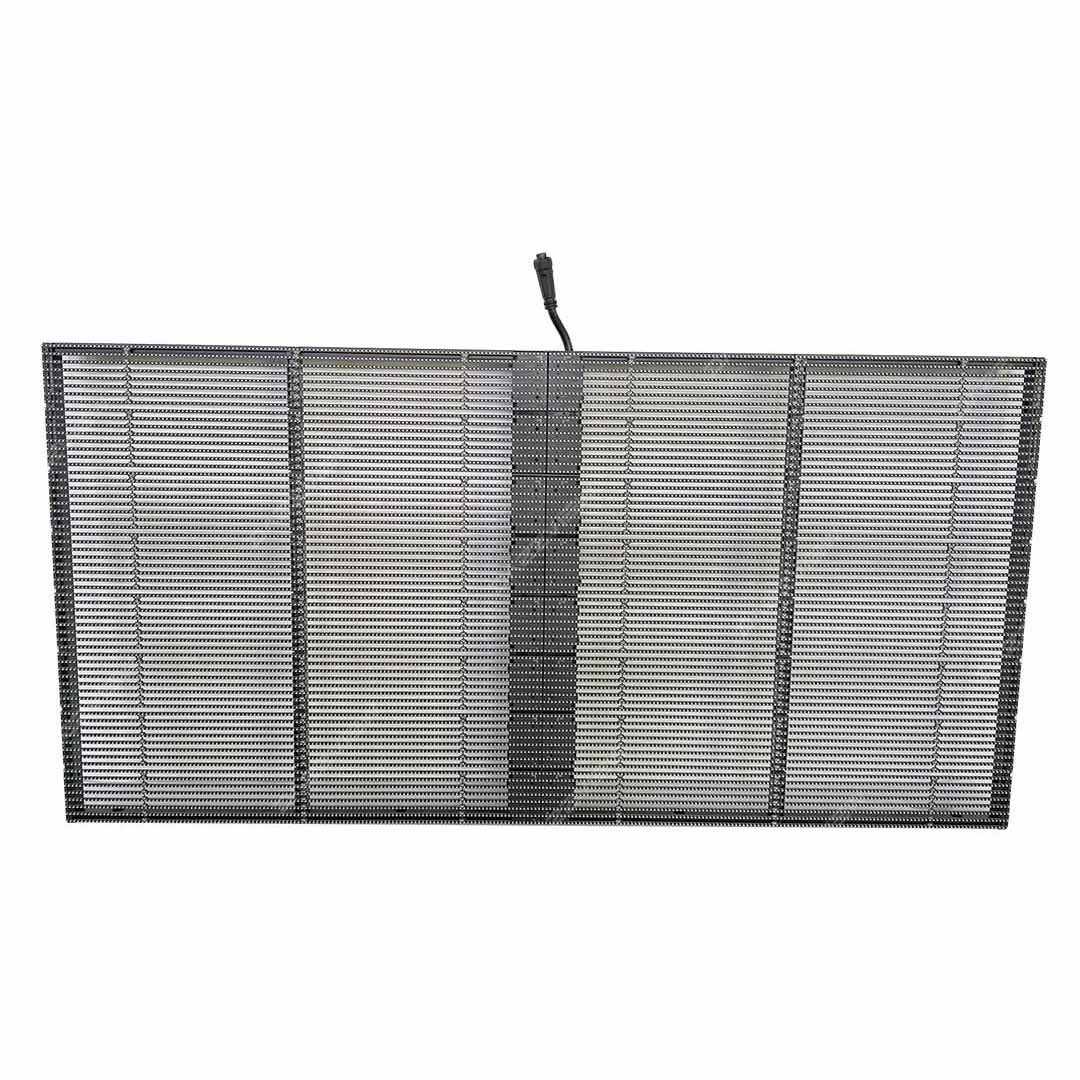

1000x500mm Cabinet For Option!
The cabinet size can also be 1000x500mm for a smaller cabinet which easier to be handled.

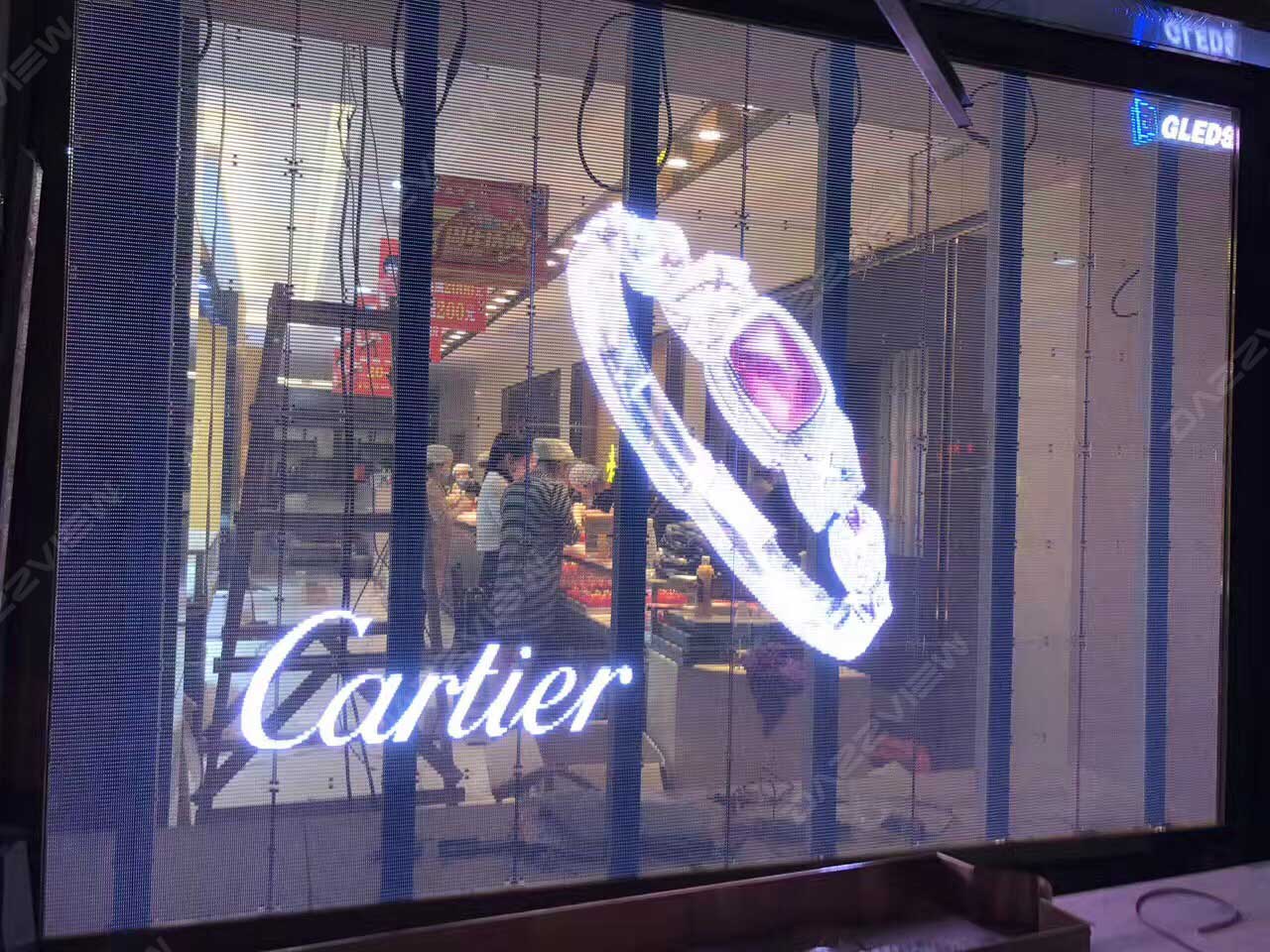

High Transparency For Glass Wall Mounted Advertising!
High transparency for a retail shop to do the advertising and attract people’s attention. It’s suitable to be used for indoor and outdoor for the applications like jewelry shop, shopping mall, retail store…
The Ultimate in Visual Clarity!

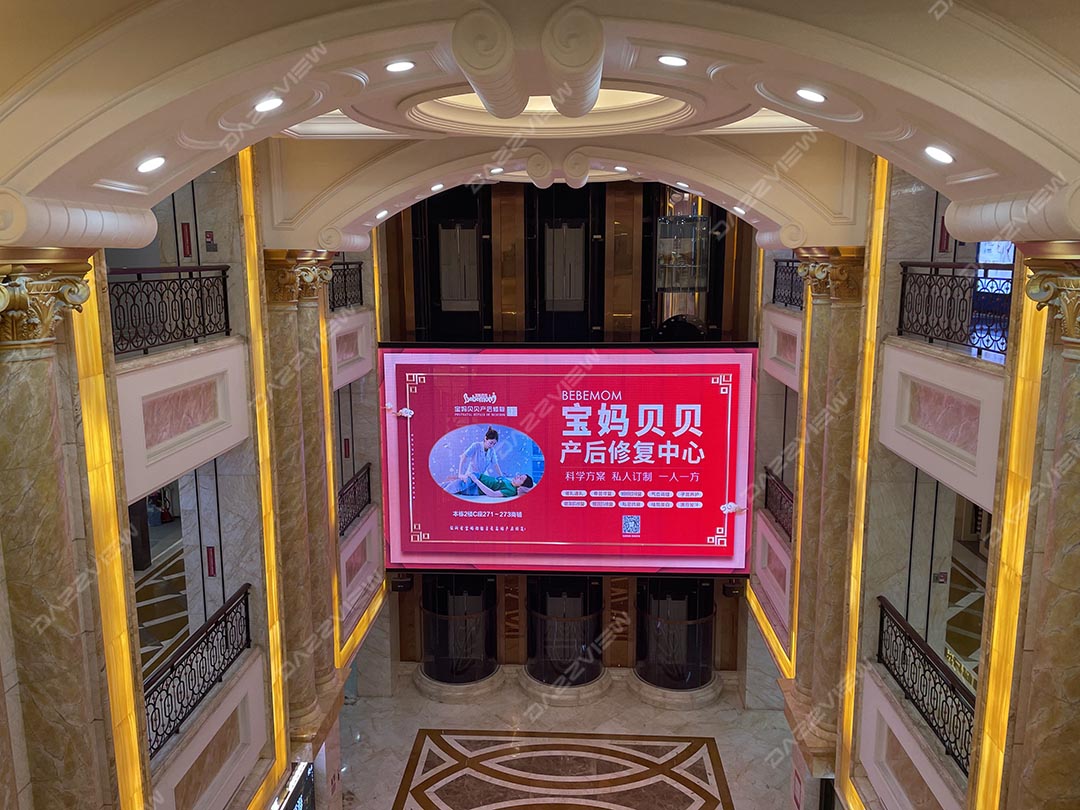

The pixel pitch P3.9-P7.8 usually used as the high definition for a transparent LED display. For a big video wall in the shopping mall or the glass wall of the building, they are very good and suitable solution for them.
Easy To Build A Big Video For A Big Shopping Mall!
For a big glass wall of the shopping mall or the empty space inside of the shopping mall, the transparent LED display is very easy to build a large LED display video wall and it save the structure, installation space and installation cost.

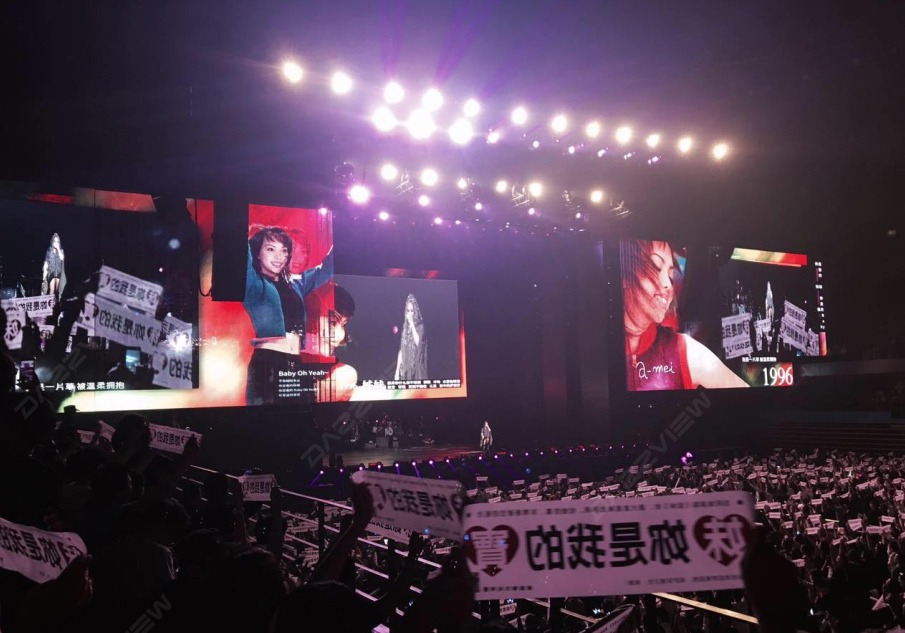

It’s Also Available To Be Used For A Concert Stage!
High Transparent LED display can also be used for a live show or concert because of the light weight of the screen and also because the competitive price advantage, it’s easy for the transparent LED display to build a large LED screen background.
Specs That Will Blow You Away!
| Specification | |||
| Model NO. | T3.9 | T7.8 | T10.4 |
| Pixel Pitch | 3.9mm/7.8mm | 7.8mm/7.8mm | 10.4mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Density | 32768dots/㎡ | 16384dots/㎡ | 9216dots/㎡ |
| Cabinet material | Aluminum | Aluminum | Aluminum |
| Size of cabinet(W*H) | 1000x500mm | 1000x500mm | 1000x500mm |
| Resolution of cabinet(W*H) | 256×64 | 128×64 | 96×48 |
| Weight of cabinet | 6KG | 5.5KG | 5KG |
| Transparency | 70% | 70% | 75% |
| Best viewing distance | >4m | >8m | >10m |
| Best viewing angle | 140° | 140° | 140° |
| Brightness | 5000cd/㎡ | 5000cd/㎡ | 6000cd/㎡ |
| Maximum power consumption | 700W/㎡ | 700W/㎡ | 700W/㎡ |
| Average power consumption | 220W/㎡ | 220W/㎡ | 220W/㎡ |
| Driving method | 1/8 scanning | 1/8 scanning | 1/3 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 1920Hz | 1920Hz | 1920Hz |
| IP grade | IP33 | IP33 | IP33 |
| Colors | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
