Light Weight Transparent LED Display for Rent
Weight: 3.5kg/pc
Pixel Pitch Indoor: P2.6, P3.9, P7.8, P10.4
Pixel Pitch Outdoor:
Key Features:
1.Light Bar Design
2.High Light Transmission
3.60% To 80% High Transparency
4.Light And Thin Structure
5.Front Or Back Maintenance
Transparent LED Display With Fast Lock For The Rental Used!
The fast locks at sides and at top are easy and fast for rental/hire used as the show and event’s background. It’s awesome visual effect for the concert, live show… Besides, if there is a event which will be held by the sea and full of big wind, light weight and transparent TR series is a perfect solution for it.

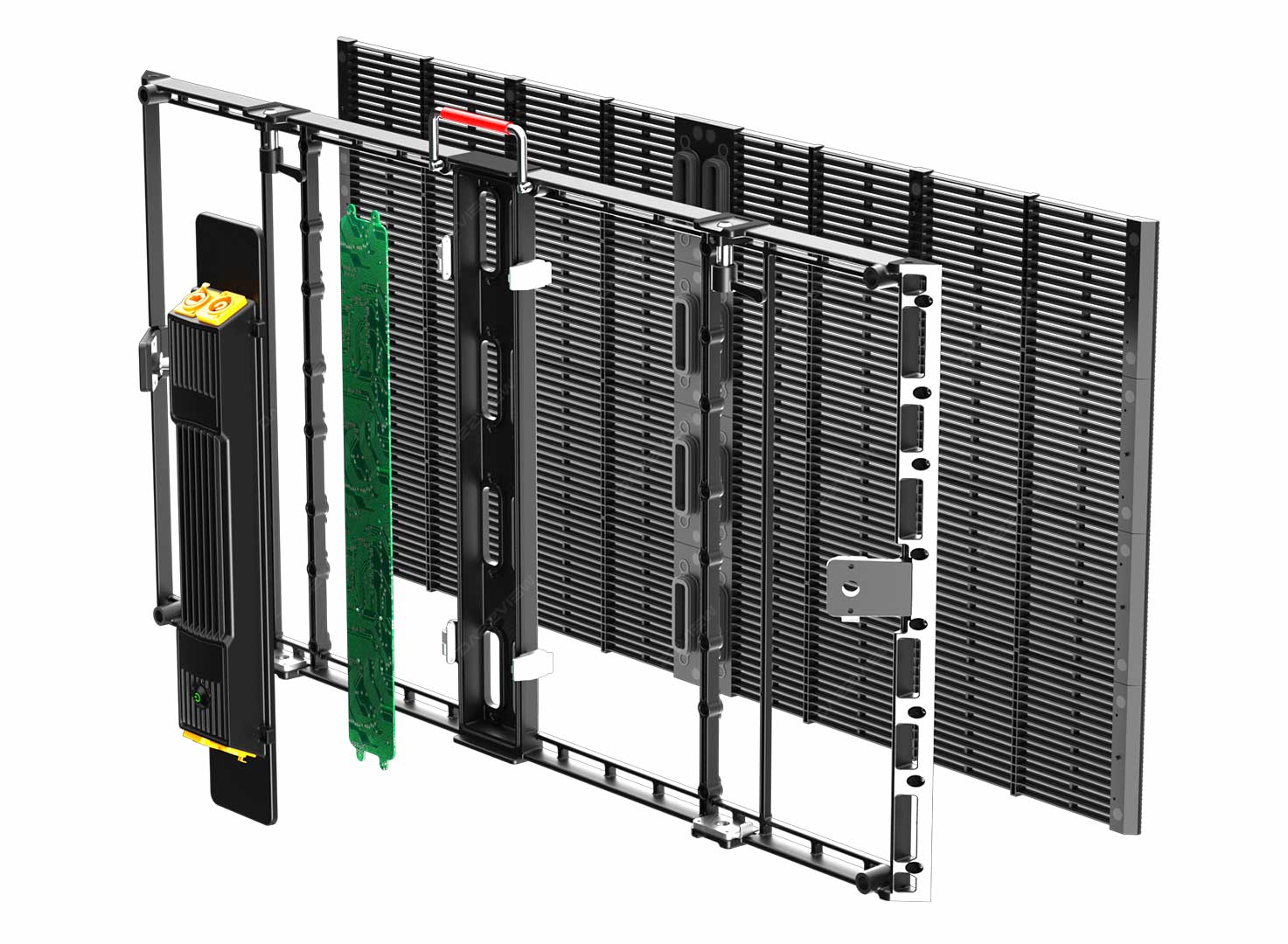

Modular Deisgn Cabinet!
The cabinet is designed in modular which is good for the maintenance. Die-casting aluminum cabinet to be used can guarantee the screen’s stable working and the transparent design reduce the weight of the LED display cabinet.
With The Curved Lock For Option, Corner Design Available!
The screen can be combined into corner/4 sides with the 45 degrees curved lock design. It’s suitable to be used for the special shape events.
Curved Corner Transparent LED Display Project!
With the corner transparent LED display screen, it’s more suitable for the corner at the booth or similar application, also it’s attractive to the customers.
Specs That Will Blow You Away!
| Specification | ||||
| Model NO. | TR2.6 | TR3.9 | TR7.8 | TR10.4 |
| Pixel Pitch | 2.6mm-6.9mm | 3.9mm-7.8mm | 7.8mm-7.8mm | 10.4mm |
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Density | 32768dots/㎡ | 32768dots/㎡ | 16384dots/㎡ | 9216dots/㎡ |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
| Size of cabinet(W*H) | 1000x500mm | 1000x500mm | 1000x500mm | 1000x500mm |
| Resolution of cabinet(W*H) | 384×72 | 256×64 | 128×64 | 96×48 |
| Weight of cabinet | 3.5KG | 3.5KG | 3.5KG | 3.5KG |
| Transparency | 60% | 70% | 70% | 75% |
| Best viewing distance | >3m | >4m | >8m | >10m |
| Best viewing angle | 140° | 140° | 140° | 140° |
| Brightness | 4000cd/㎡ | 5000cd/㎡ | 5000cd/㎡ | 6000cd/㎡ |
| Maximum power consumption | 700W/㎡ | 700W/㎡ | 700W/㎡ | 700W/㎡ |
| Average power consumption | 220W/㎡ | 220W/㎡ | 220W/㎡ | 220W/㎡ |
| Driving method | 1/12 scanning | 1/8 scanning | 1/8 scanning | 1/3 scanning |
| Gray scale | 16 bits | |||
| Refresh frequency | 1920Hz | |||
| IP grade | IP43 | |||
| Colors | 16777216 | |||
| Color temperature | 6500-9500k | |||
| Driving device | Constant current | |||
| Working voltage | AC220V/110V±10% | |||
| Working temperature | —20℃~50℃±10% | |||
| MTBF | >10,000 hours | |||
| Frame frequency | 60Hz | |||
| Life Span | 100,000 hours | |||
