Fixed 90 Degrees L Shape Corner LED Display
Weight: 29kg/pc
Pixel Pitch Outdoor: P3.9, P4,8
Key Features:
1.L-Shaped Design
2.High Brightness And Visibility
3.Indoor And Outdoor Applications
4.Customizable
Front And Rear Maintenance LED Module!
Full front maintenace design which is suitable for the wall mounted project will no space at back side. It save the installation space and steel structure.
Easy For Installation And Maintenance!
The front and rear maintenance modules are easy to be maintenance with T tool from front and rear.
The power/signal connector in a high safety protection gurantee the high waterproof rate in front and back.
The aviation connectors make sure the connection safe and fast.

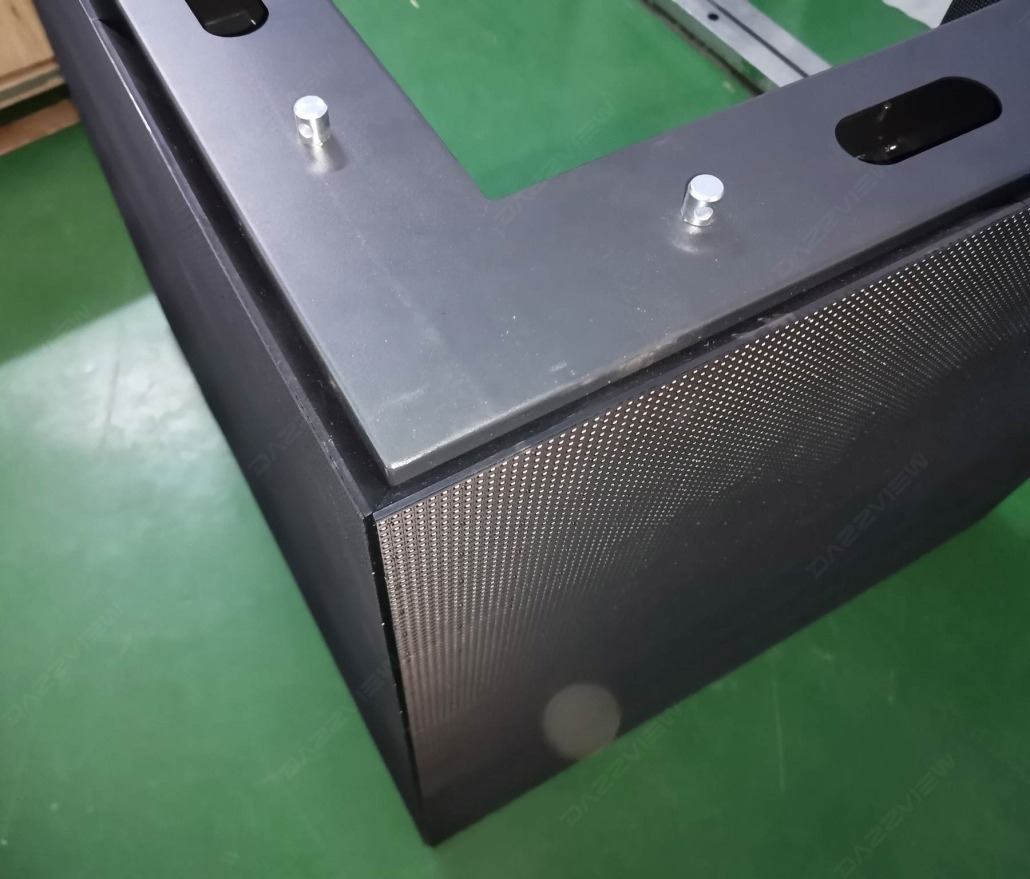

90 Degrees Corner Design For 3D DOOH!
Full front service with 3D 90 degrees corner design is the biggest advantage of GL series LED display, When there is a wall, and full front service demand, our GL series is suitable and works perfect.
High Quality Outdoor 3D DOOH LED Display Cabinet Connection!
High quality for outdoor 3D DOOH solution, good performance for the cabinets connection.
Perfect Visual Effect With The Corner for 3D LED Display!
High quality visual effect for the outdoor 3D DOOH LED display solution. The gap between the corner is very small.
Install On The Wall With Ease!
GL series is easy to be mounted on the wall because of the front maintenance function. If there is limited space at the back of the cabinet, just choose GL series.
| Specification | ||
| Model No. | GL3.9 | GL4.8 |
| Pixel Pitch | 3.91mm | 4.81mm |
| LED Type | SMD2727 | SMD2727 |
| Pixel configuration | 1R1G1B | |
| Size of module(W*H) | 250x250mm | |
| Resolution of module(W*H) | 64×64 dot | 52×52 dot |
| Density | 65536dot//㎡ | 43264dot//㎡ |
| Cabinet material | Aluminum/Steel | |
| Size of cabinet(W*H) | 1000x1000mm | |
| Weight of cabinet | 29kg | 29kg |
| Best viewing distance | ＞4m | ＞5m |
| Best viewing angle | 140° | |
| Brightness | 4500-5000 CD/㎡ | 4500-5000 CD/㎡ |
| Maximum power consumption | 800W/㎡ | 800W/㎡ |
| Average power consumption | 270W/㎡ | 270W/㎡ |
| Driving method | 1/16S | 1/13S |
| Gray scale | 14bit | 14bit |
| Refresh frequency | ≥3840HZ | ≥3840HZ |
| IP grade | IP65 | IP65 |
| Colors | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours |
