Fixed 3D LED display for DOOH
Weight: 25kg/pc
Pixel Pitch Outdoor: P5.7, P6.6, P8, P10
Key Features:
1.Minimalistic Structure Design
2.Good Heat Dissipation
3.With 90 Degrees Corner Curved
4.Aluminum Cabinet & Module Back Shell
5.Designed For The Permanent Installation
6.Light Weight & Elegant Look
7.SMD Three-In-One Technology
8.Wide Viewing Angle And Excellent Surface Flatness And Stability
Aluminum LED Module Back Shell!
Aluminum Cabinet with Light Weight, Thin, Strong!
The total aluminum material makes the cabinet strong, light weight and thin. It can reduce the installation space and save the steel structure cost.
Easy To Be Connected With Seamless Design!
The simple cabinet structure design, the module fully exposed installation, no need for air conditioning. Front and back maintenance is available, is easier, and reduces both installation costs.
The cabinets can be connected easily.
Good Heat Dissipation!
The fan and holes in the power box provide effective ventilation for heat dissipation in the cabinet.
Fan inside power box
Speed up the air flowing.
Slot Prevent the Water
Prevent the water get inside of the power box.

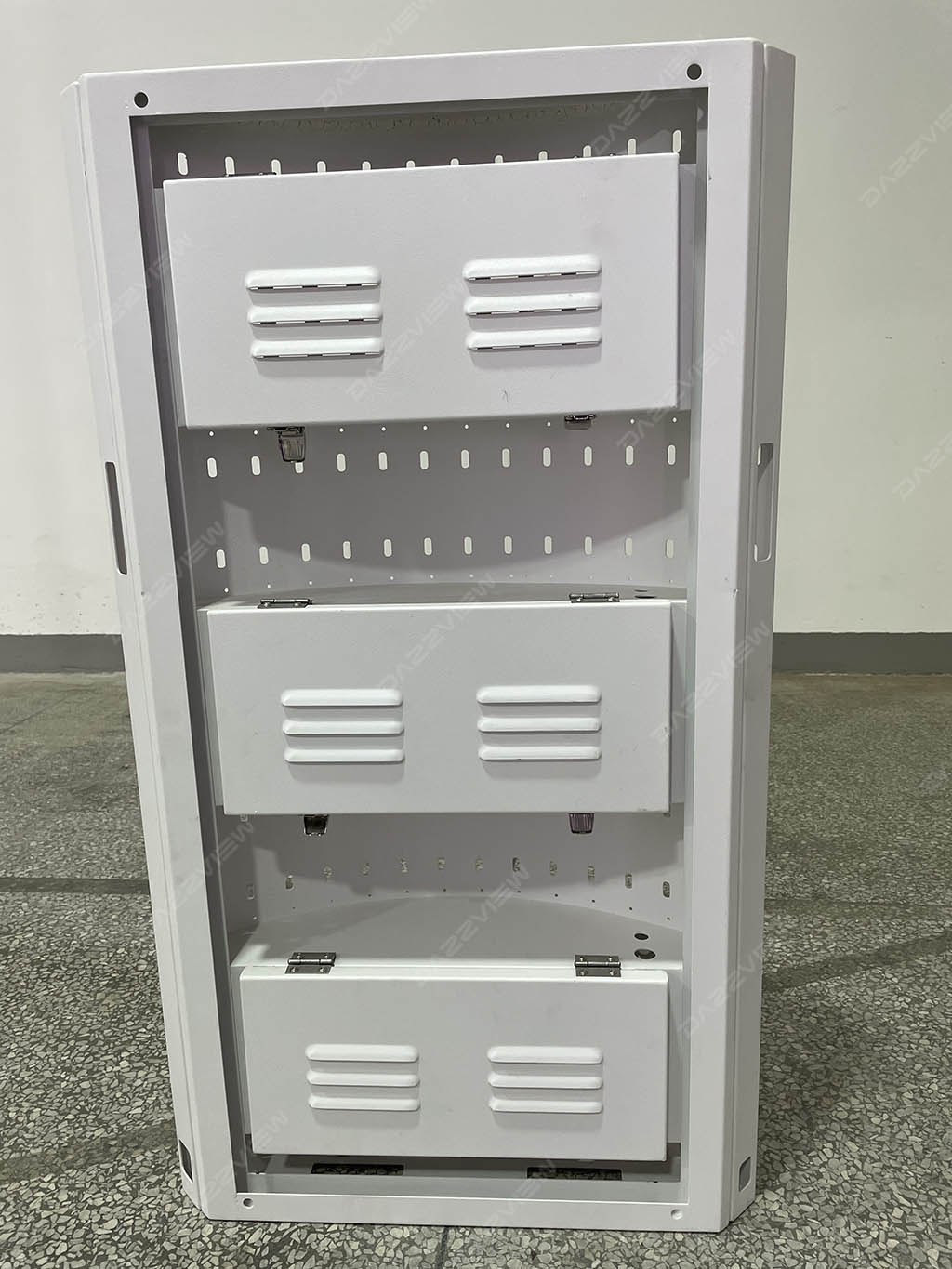

Holes on the power box
The holes facilitate the exchange of hot air inside the power box with cold air from outside.
No Cable Design!
A groove at the bottom of the cabinet allows you to place the power cable inside and conceal it with a cover. So people will not see the cables.
High Waterproof Rate: IP65!
With the rubber design at the edge of the power box, the power box has a good waterproof rate and the water will not get in. The aluminum back shell module has a high waterproof rate.
With the safe lock design, the power box can be opened easily. There are two power supplies for a standard cabinet. The modules with the pin connection design which module can connect to the cabinet without cables.
Easy And Stable Connection!
You can easily connect the cabinets together using the connecting plate. Wonderful connecting plate guarantees the cabinet without gap and makes sure the high flatness.
Customized With Logo Print Is Available!
When you want to promoted your brand to the market, it’s available to print your logo on our GK series.
Cabinets In Aging Test!
Good looking and simple cabinet design makes the cabinet look elegant, and high-quality performance like good heat dissipation.
90 Degrees Corner LED Display For 3D DOOH Available!
Curved Cabinet Available For 3D DOOH!
Convenient To Do The Maintenance At The Corner!
Even at the curved corner LED display cabinet, it’s also available to do the maintenance both from the front and back sides.
Good Performance Curved Corner LED Display Cabinet!
The curved corner LED display ensures excellent performance for 3D video ads.
Our DOOH Product Satisfy The Media Customers!
The primary concern for an advertising media owner is how much they earn from the ads their customers purchase for the DOOH billboard. So a high-quality outdoor fixed LED display screen for permanent installation is very important. With the GK series, you will be satisfied.
High Performance Curved Corner Design!
The flat and curved cabinets have distinct designs, but after extensive testing, we’ve found a perfect solution to seamlessly connect them.
| Specification | ||||
| Model NO. | GK5.7 | GK6.6 | GK8 | GK10 |
| Pixel Pitch | 5.7mm | 6.66mm | 8mm | 10mm |
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 |
| Pixel configuration | 1R1G1B | |||
| Size of module(W*H) | 480x320mm | |||
| Resolution of module(W*H) | 84×56 dot | 72×48 dot | 60×40 dot | 48x32dot |
| Density | 30625dot//㎡ | 22500dot//㎡ | 15625dot//㎡ | 10000dot//㎡ |
| Cabinet material | Aluminum | |||
| Size of cabinet(W*H) | 960x960x72mm | |||
| Weight of cabinet | 25kg | 25kg | 25kg | 25kg |
| Best viewing distance | ＞5m | ＞5m | ＞5m | ＞5m |
| Best viewing angle | 140° | |||
| Brightness | >6500 CD/㎡ | >6500 CD/㎡ | >6500 CD/㎡ | >6500 CD/㎡ |
| Maximum power consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Average power consumption | 320W/㎡ | 320W/㎡ | 320W/㎡ | 320W/㎡ |
| Driving method | 1/7S | 1/6S | 1/5S | 1/2S |
| Gray scale | 14bit | 14bit | 14bit | 14bit |
| Refresh frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ |
| IP grade | IP65 | IP65 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
