Indoor Fixed Die-casting Aluminum LED Display for LED Video Wall
Weight: 5.9kg/pc
Pixel Pitch Intdoor: P1.9, P2.6, P2.9, P3.9, P4.8
Key Features:
1.Die-Casting Aluminum Cabinet
2.Light Weight And Super Slim
3.Full Front Maintenance
4.Seamless Design
Suitable For Small Pixel Pitch Applications!
P1.875, P2.5, P2.6, P2.9, P3.9 available.

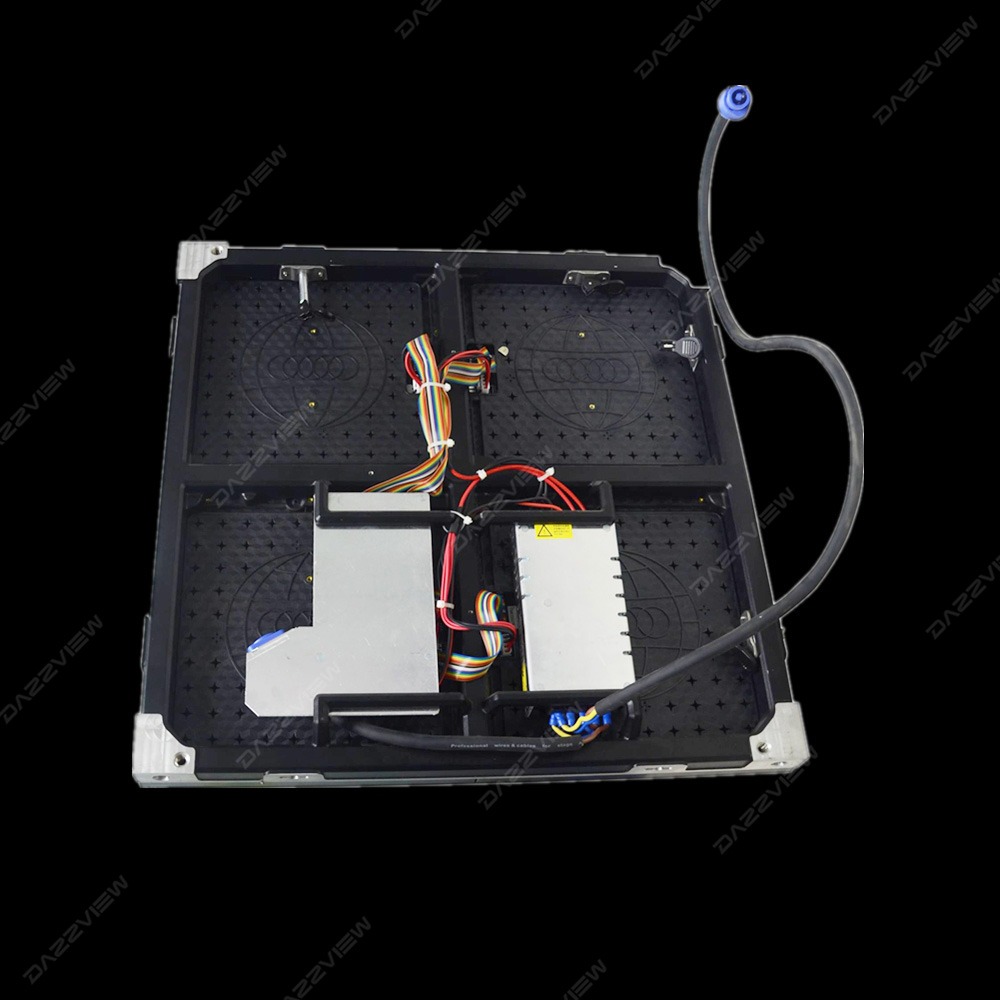

With the cable connected design, the power cable connected on the cabinet can save installation time.
Full Front Maintenance, Easy Installation And Maintenance!
Suitable for the wall mounted installation.
Easy fasy lock for the cabinet quick connection. Module, power suppy, receiving card can be tookout from the front side.
High Persicion, Light Weight, Save Space!

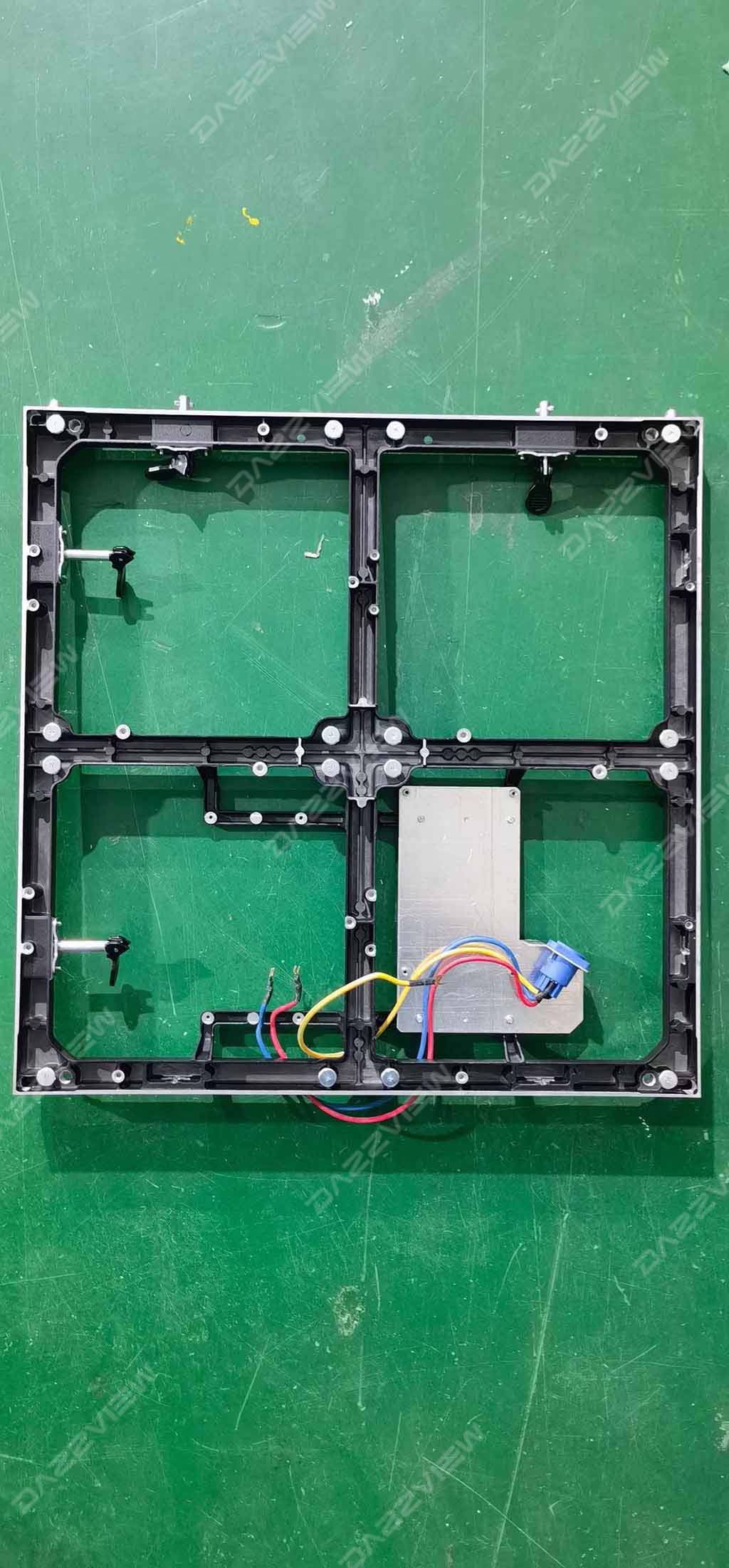

Die-casting Aluminum cabinet with CNC technology, guarantee the flatness.
Each cabinet less than 25kg/sqm.
Slim cabinet design, less than 75mm depth.
Easy installation and maintenance!

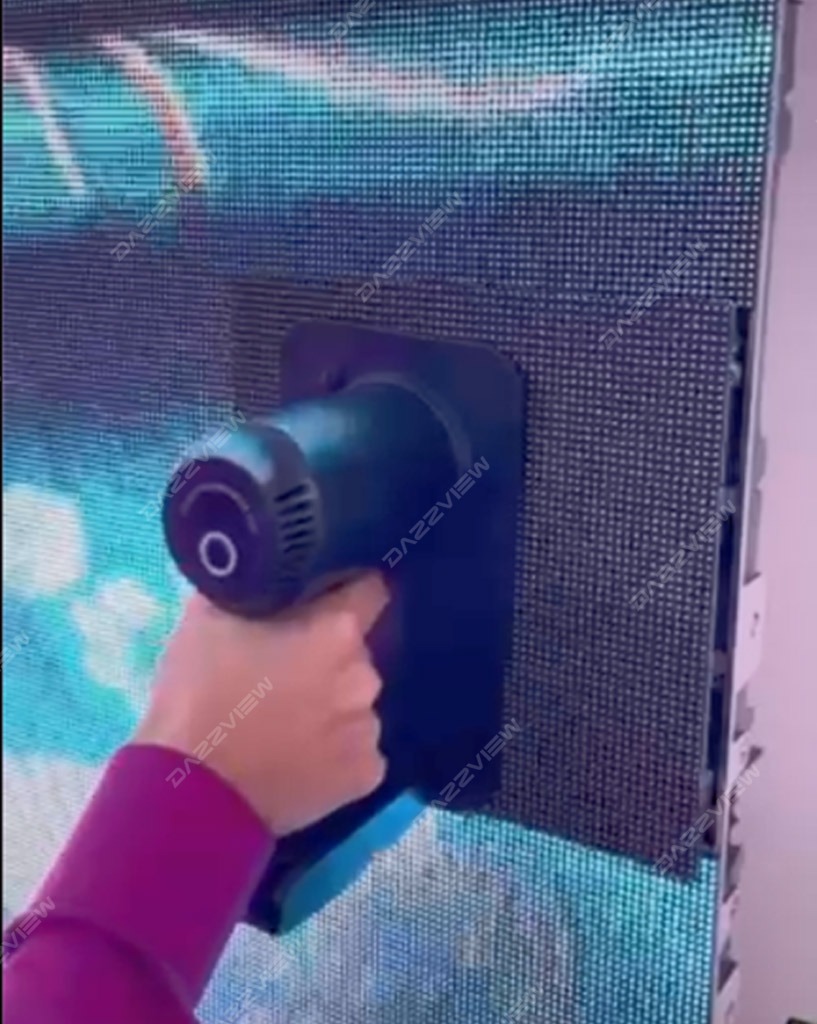

Vacuum design of front maintenance tool to easily take outany module with magnets from front side.
Easy and fast installation and maintenance, save installationtime.

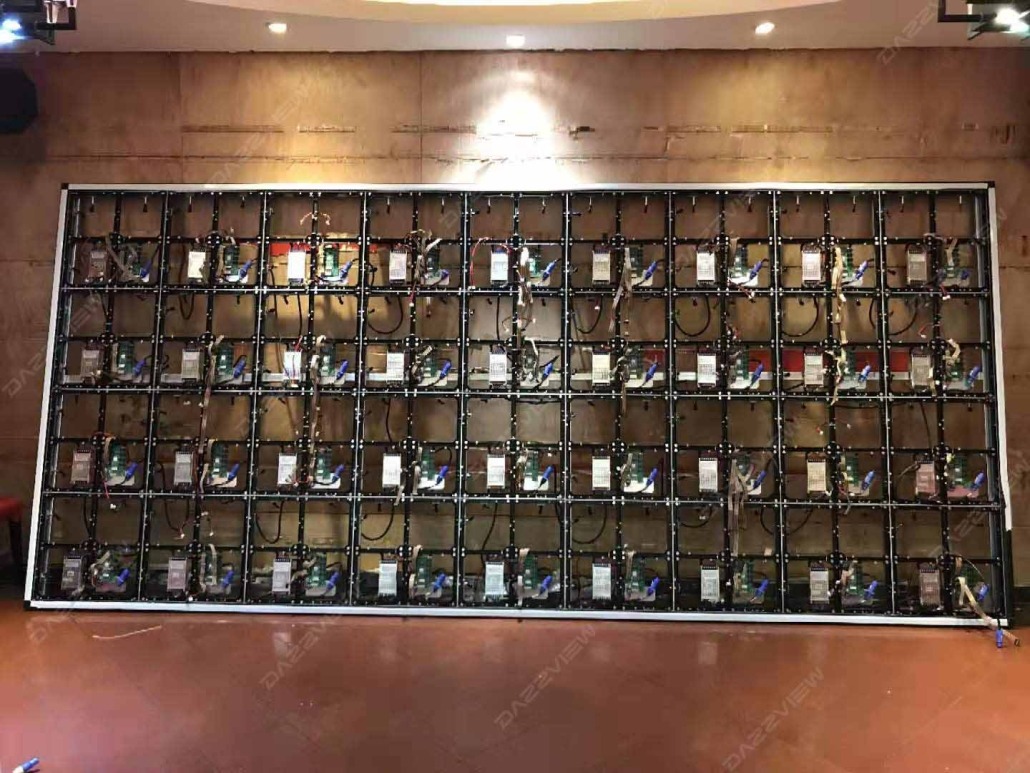

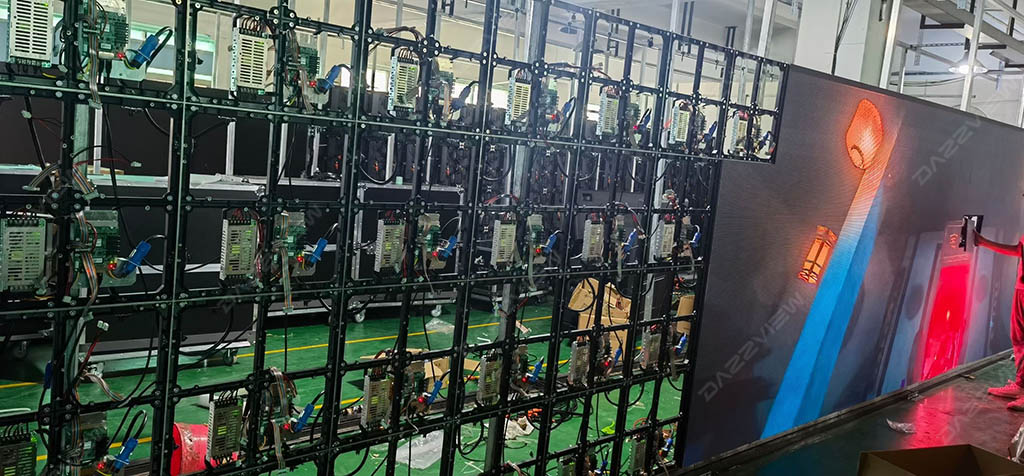

Aging Test For Quality Control!
Strict quality control with aging test guarantee our customers have a good experience to use our LED display product.
Optimum Performance For Wall Mounted Applications!
With the wall mounted LED display project, our DN series is a very good solution. All the components can be served from the front side including modules, power supply, receiving card… With DN series solution, less money you need to pay for it.
Specs That Will Blow You Away!
| Specification | ||||||||||
| Model No. | DN1.9 | DN2.6 | DN2.9 | DN3.9 | DN4.8 | |||||
| Pixel Pitch | P1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | |||||
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | |||||
| Pixel configuration | 1R1G1B | |||||||||
| Size of module(W*H) | 250mmx250mm | |||||||||
| Resolution of module(W*H) | 128x128dot | 96x96dot | 84x84dot | 64x64dot | 52x52dot | |||||
| Density | 262,144dots/㎡ | 147,456dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | 43,264dots/㎡ | |||||
| Cabinet material | Die-Casing Aluminum | |||||||||
| Size of cabinet(W*H) | 500x500mm | |||||||||
| Weight of cabinet | 5.9kg | |||||||||
| Best viewing distance | >2m | >2.5m | >3m | >4m | >5m | |||||
| Best viewing angle | 140° | |||||||||
| Brightness | 800-1000cd/㎡ | 800-1000cd/㎡ | 800-1000cd/㎡ | 1000cd/㎡ | 1000cd/㎡ | |||||
| Maximum power consumption | 535W/㎡ | |||||||||
| Average power consumption | 190W/㎡ | |||||||||
| Driving method | 1/32 scanning | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/13 scanning | |||||
| Gray scale | 16 bits | |||||||||
| Refresh frequency | 3840Hz | |||||||||
| IP grade | IP30 | |||||||||
| Colors | 16777216 | |||||||||
| Color temperature | 6500-9500k | |||||||||
| Driving device | Constant current | |||||||||
| Working voltage | AC220V/110V±10% | |||||||||
| Working temperature | —20℃~50℃±10% | |||||||||
| MTBF | >10,000 hours | |||||||||
| Frame frequency | 60Hz | |||||||||
| Life Span | 100,000 hours | |||||||||
