Rental LED Display in competitive price
DRL Series
Dimension: 500x1000mm
Weight: 13kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Features:
1.Fast Lock
2.High compatibility
3.Curved Version Cabinet
4.High Flatness
5.Excellent Positioning System
6.Ultra slim and light weight
Weight: 13kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Features:
1.Fast Lock
2.High compatibility
3.Curved Version Cabinet
4.High Flatness
5.Excellent Positioning System
6.Ultra slim and light weight
Quantity:
Light Weight And Good Design For The Big Rental Cabinet!
Light weight and good design is guarantee the screen easy to be used to build a big video wall for the rental used LED display screen.
High Quality Materials To Be Used!
High quality materials to be used to guarantee the good product provide to our customer and the high level quality control make sure our customer satisfy with the products.

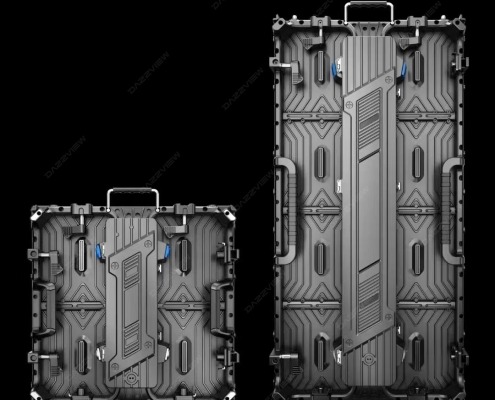

Big Cabinet And Small Cabinet Can Work Together!
The 500x500mm cabinet and 500x1000mm cabinet can work together with each other, the location pin and groove can match each other and the fast locks are the same.
Aging Test!
Aging test is guarantee the quality and visual effect of rental LED display.

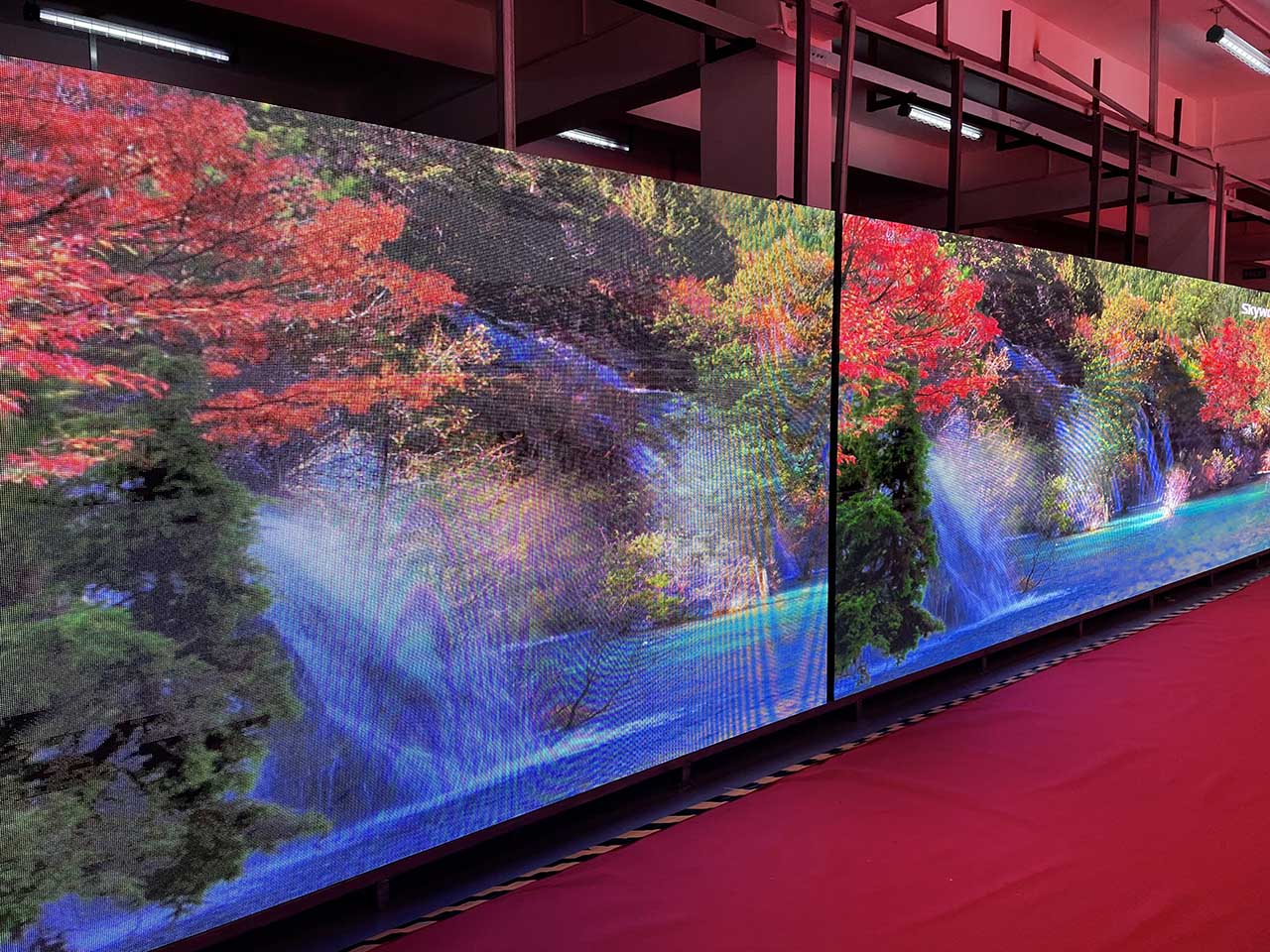

Install for Show, Event, Conert, Live House…
DRL series is a popular rental LED display screen solution which suitable to be used for different show, event, concert, music live, carnival, campaign…wherever opening space with event needed.
Specs That Will Blow You Away!
| Specification | |||||
| Model No. | DRL2.6 | DRL2.9 | DRL3.9 | DRL(O)3.9 | DRL(O)4.8 |
| Pixel Pitch | 2.6mm | 2.976mm | 3.9mm | 3.9mm | 4.8mm |
| LED Type | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||||
| Size of module(W*H) | 250mmx250mm | ||||
| Resolution of module(W*H) | 96×96 | 84×84 | 64×64 | 64×64 | 52×52 |
| Density | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | ||||
| Size of cabinet(W*H) | 500mmx1000mm | ||||
| Weight of cabinet | 13KG | ||||
| Best viewing distance | >2.6m | >2.9m | >4m | >4m | >5m |
| Best viewing angle | 140° | ||||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | ||||
| Refresh frequency | 3840Hz | ||||
| IP grade | IP43 | IP43 | IP43 | IP65 | IP65 |
| Colors | 16777216 | ||||
| Color temperature | 6500-9500k | ||||
| Driving device | Constant current | ||||
| Working voltage | AC220V/110V±10% | ||||
| Working temperature | —20℃~50℃±10% | ||||
| MTBF | >10,000 hours | ||||
| Frame frequency | 60Hz | ||||
| Life Span | 100,000 hours | ||||
