Rental LED Display with affordable price
Weight: 7.5kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Key Features:
1. Fast Lock
2. High compatibility
3. Curved Version Cabinet
4. High Flatness
5. Excellent Positioning System
6. Ultra slim and light weight
Light Weight Rental LED Display Screen With Affordable Price!

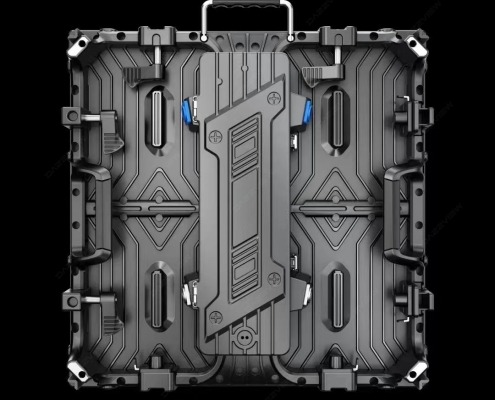

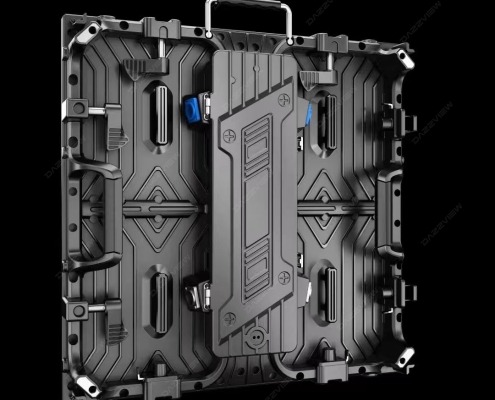

The cabinet is in size 500x500mm, 7.5kg/pc. It’s easy and fast to be used for the rental type LED display background.
Rental LED Display Screen Can Be Used For Multiple Applications!
The DR series rental LED display can be used for live show, concert, exhibition, showroom, event… Almost a any rental application is suitable.
Easy To Be Handled Cabinet!
Simple, light weight cabinet structure design is easy for the rental LED display project using. With the fast locks, the cabinet is easy to installed and disassembled. Also, curved locks can be added for the curved version cabinet which needs the concave and convex function.
Aging Test!
Aging test is guarantee the quality and visual effect of rental LED display.
Install for Show, Event, Conert, Live House…
DHL series is a popular rental LED display screen solution which suitable to be used for different show, event, concert, music live, carnival, campaign…wherever opening space with event needed.
Specs That Will Blow You Away!
| Specification | |||||
| Model No. | DR2.6 | DR2.9 | DR3.9 | DRO3.9 | DRO4.8 |
| Pixel Pitch | 2.6mm | 2.976mm | 3.91mm | 3.9mm | 4.8mm |
| LED Type | SMD2020 | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||||
| Size of module(W*H) | 250mmx250mm | ||||
| Resolution of module(W*H) | 96×96 | 84×84 | 64×64 | 64×64 | 52×52 |
| Density | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | ||||
| Size of cabinet(W*H) | 500mmx500mm | ||||
| Weight of cabinet | 7.5KG | ||||
| Best viewing distance | >2.6m | >2.9m | >4m | >4m | >5m |
| Best viewing angle | 140° | ||||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | ||||
| Refresh frequency | 3840Hz | ||||
| IP grade | IP43 | IP43 | IP43 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
