Dance Floor LED Display with Aluminum Cabinet!
They provide a unique visual experience for patrons and can be customized to fit any event or theme.
With their versatility and durability, dance floor LED displays are a valuable investment for businesses
looking to enhance their entertainment offerings and attract new customers.
Advantages of Dfloor:
1. Aluminum cabinet, easy to move with handle
2. Strong masks protect the LED lamp well
3. Strong standing bracket guarantee the screen flat enough to stand on
4. Fast installation
5. Smaller pixel pitch: P1.9, P2.6, P2.9, P3.9, P4.8
6. 3 years warranty
Make Your Feet Satisfied!
Good performance dance floor LED display, it’s a perfect choice for dancing, running, walking, promise your feet would like it.

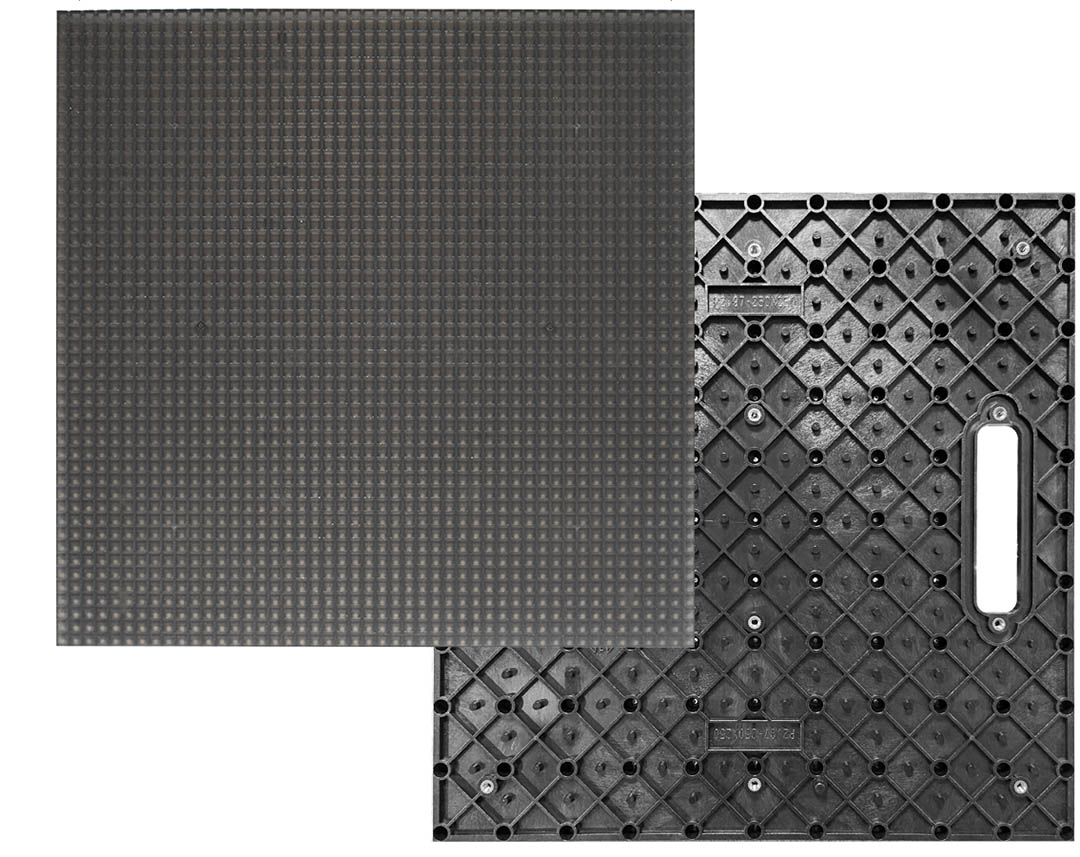

High Quality Dance Floor LED Display Module!
250x250mm LED module size, strong mask support standing on.

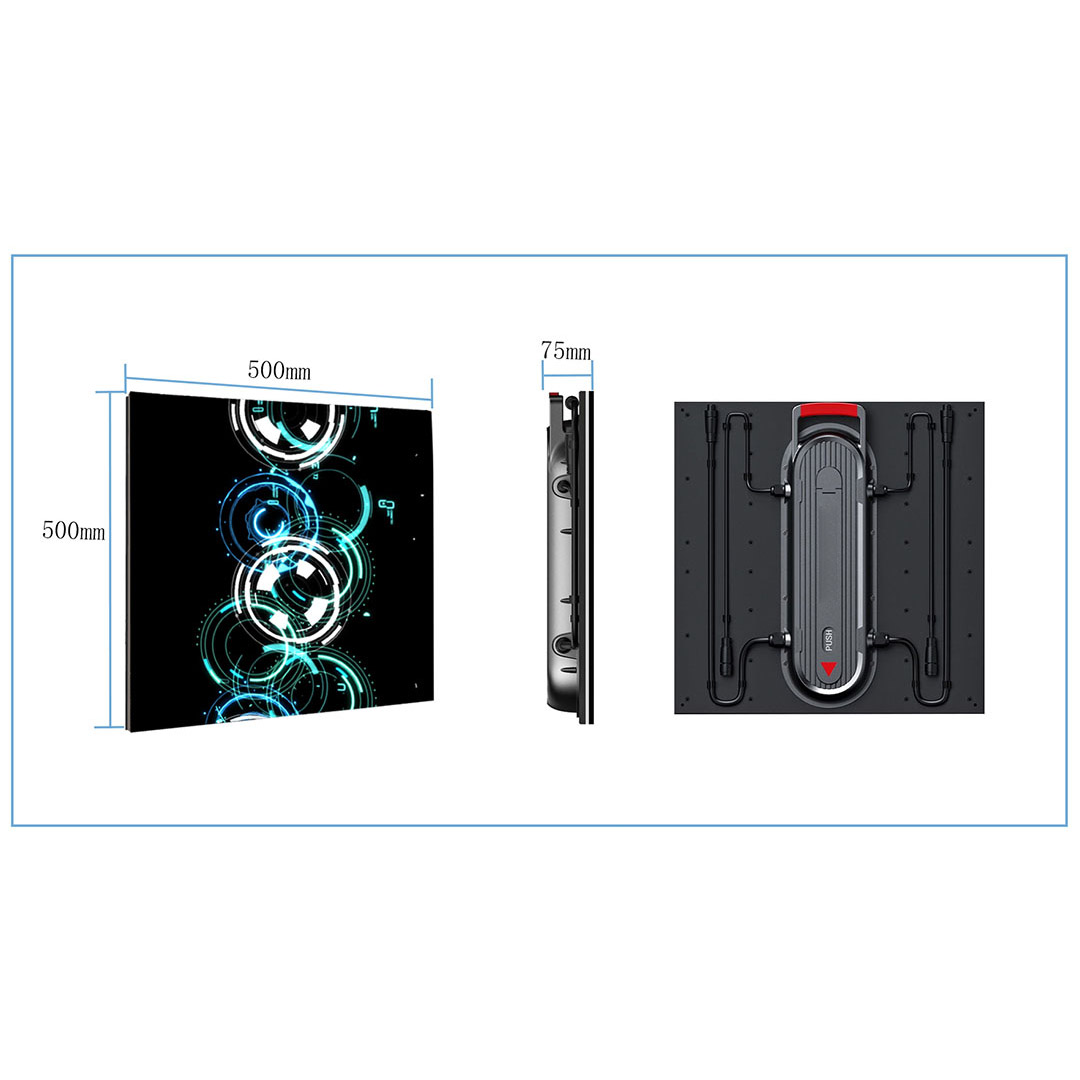

High Quality Dance Floor LED Display Cabinet!
Size: 500x500mm, weight:11.5kg/pc.
Easy to Install!
- Install directly on the ground. Suitable for small size floor LED display.
- Embedded installation. Please do the under construction and do the ventilation job well, but not suitable for outdoor used.
- Install higher than the ground, suitable for outdoor used. 40cm higher than the ground to prevent flooded. Please do the ventilation job well.
How To Install the Dance Floor LED Display!
It’s simple to do the installation job.
1. Install the slideway on the ground,
2. Install cabinets,
3. Connect the cables between cabinets,
4. Light up the floor LED screen.

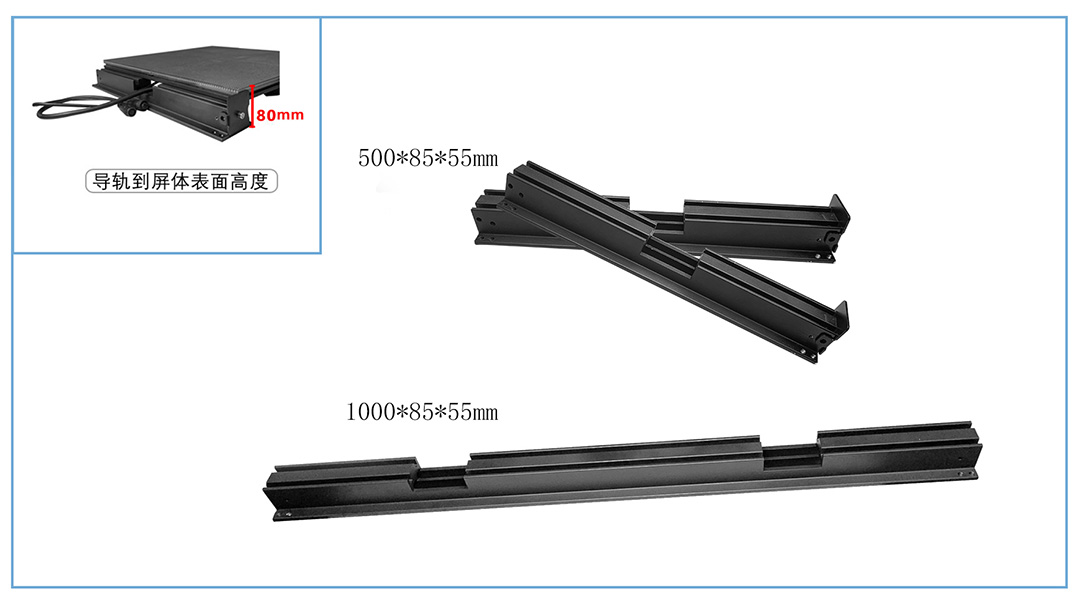

Strong Support Slideway/Bracket!
The cabinets are easy to be connected with the slideway/bracket with seamless. Strong slideway guarantee the flatness of the dance floor LED display screen and smooth to walk on, run on or dance on.
Simple Installation!
The cabinets are easy to be connected with the slideway/bracket.
Maintenance Tool!
The LED cabient is easy to do maintenance with the sucking maintenance tool.
Interactive System With Self-developed Control System!
With the control system we developed, the dance floor LED display screen is easily to achieve interactive function.
Install Anywhere with Ease!
Dance floor LED display screen is suitable to be installed in anywhere you want to install like mall, shopping center, airport, stage, exhibition center, playground…
Interactive Function For An Option!
Interactive is a good function on the dance floor LED display to attract people's attention. It brings happiness, fun, joy and interets to the world. It's suitable for the application which needs to communicate with the screen.
https://www.youtube.com/watch?v=8hC2hAvEVbM&t=26s
Specs That Will Blow You Away!
| Specification | ||||||
| Model NO. | FA2.6 | FA2.9 | FA3.9 | FA4.8 | FA(O)3.9 | FA(O)4.8 |
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 4.8mm | 3.9mm | 4.8mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm |
| Resolution of module(W*H) | 96x96dot | 86x86dot | 64x64dot | 52x52dot | 64x64dot | 52x52dot |
| Density | 147,456dots | 118,336dots | 65,536dots | 43,264dots | 65,536dots | 43,264dots |
| Cabinet material | Aluminum | |||||
| Size of Display(W*H) | 500x500mm | |||||
| Weight of cabinet | 11.5Kg/pcs | |||||
| Brightness | 1800cd/㎡ | 1800cd/㎡ | 1800cd/㎡ | 1800cd/㎡ | 2500-3500cd/㎡cd/㎡ | 4000cd/㎡ |
| Maximum power consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/24 scanning | 1/21 scanning | 1/16 scanning | 1/13 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP grade | IP31 | IP31 | IP31 | IP31 | IP68 | IP68 |
| load-bearing | 1.5tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ |
| Colors | 16777216 | |||||
| Color temperature | 6500-9500k | |||||
| Driving device | Constant current | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | —20℃~50℃±10% | |||||
| MTBF | >10,000 hours | |||||
| Frame frequency | 60Hz | |||||
| Life Span | 100,000 hours | |||||
