Rental LED Display
Weight: 15kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Key Features:
1.Curved Version Cabinet
2.Full front and rear maintenance
3.Safety protection at the corner
4.Excellent Positioning System
5.Ultra slim and light weight
Modular design
Full front and rear maintenance
Safety protection at the corner
Protect the LEDs during shipping and moving
Excellent Positioning System
Location pin, location slot, fast lock
Safety lock at the back of the module
Protect the magnetic module
Curved Version Cabinet
with curved lock for options
0°, -2.5°,+2.5°, -5°,+5° available
Fast Lock
For fast installation
Strengthened structure
To build a large display
Flat Version Cabinet with Fast Lock
Ultra Slim And Light Weight!
Size: 500x1000x81.5mm, weight: 15kg/pc. Strong cabinet are made by the enough die-casting aluminum material.
Easy Maintenance & Good Heat Dissipation!
Enough big space inside of the power supply box, the power supplies fixed directly on the power supply box, module with magnetic design, easy to do the maintenance from the front and rear.
Safety Protection At The Corner!
Protect the LED lamp at the corner during shipping and moving.
Safety Lock At The Back Of The Module!
The module with magnetic design, easy to do the front maintenance. Safety lock at the back of the module to protect the module well.
Excellent Positioning System!
Perfect design fast lock, location pin, location slot.
Flat Version Cabinet With Fast Lock!
The simple but strong flat version fast lock guarantee the screen has a good flatness.
Easy To Connect Up And Down Cabinet With Fast Lock!
The up and down cabinets are easily to be connected with the fast locks.
Easy For Two Cabinets Connection!
The CNC technology at the edge guarantee the seamless connection. The fast lock ensure easy to connect the cabinets.
Easy Using Curved Lock!
-5°, -2.5°, 0°, 2.5°, 5° curved lock is available to be used in curved LED panel rental screen.
Inner Curved And Outer Curved Available!
The curved LED panel rental screen is in special design, with the curved lock desgin to achieve inner and outer curved or around shape for some special visual effect project.
Aging Test!
Aging test is guarantee the quality and visual effect of rental LED display.

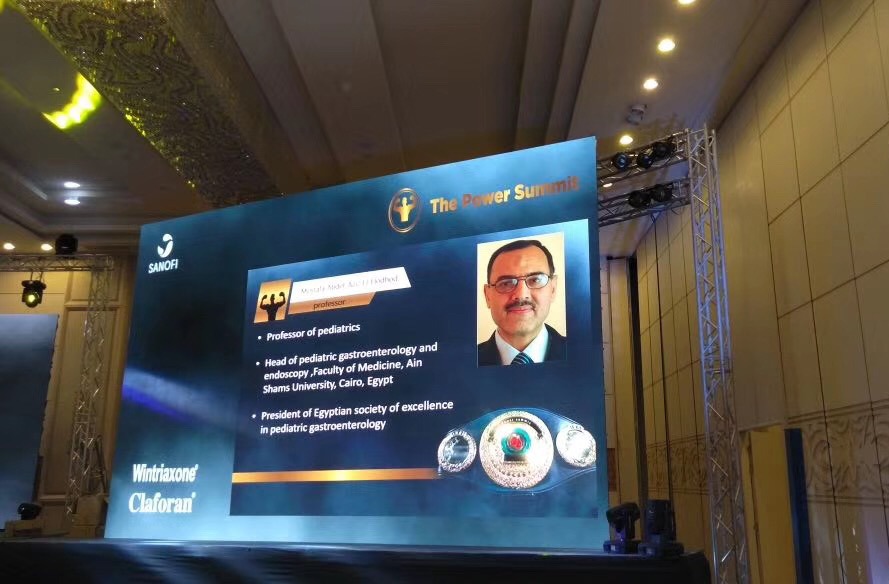

Install for Show, Event, Conert, Live House…
DHL series work as curved LED panel rental screen is a popular rental LED display screen solution which suitable to be used for different show, event, concert, music live, carnival, campaign…wherever opening space with event needed.
| Specification | ||||
| Model No. | DVL2.6 | DVL3.9 | DVL(O)3.9 | DVL(O)4.8 |
| Pixel Pitch | 2.6mm | 3.9mm | 3.9mm | 4.8mm |
| LED Type | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | |||
| Size of module(W*H) | 250mmx250mm | |||
| Resolution of module(W*H) | 96×96 | 64×64 | 64×64 | 52×52 |
| Density | 147456dots/㎡ | 65536dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | |||
| Size of cabinet(W*H) | 500mmx1000mm | |||
| Weight of cabinet | 15KG | |||
| Best viewing distance | >2.6m | >4m | >4m | >5m |
| Best viewing angle | 140° | |||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/16 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | |||
| Refresh frequency | 3840Hz | |||
| IP grade | IP31 | IP31 | IP65 | IP65 |
| Colors | 16777216 | |||
| Color temperature | 6500-9500k | |||
| Driving device | Constant current | |||
| Working voltage | AC220V/110V±10% | |||
| Working temperature | —20℃~50℃±10% | |||
| MTBF | >10,000 hours | |||
| Frame frequency | 60Hz | |||
| Life Span | 100,000 hours | |||
