Rental LED Display
Weight: 8.5kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Key Features:
1.Curved Version Cabinet
2.Full Front And Rear Maintenance
3. Safety Protection At The Corner
4.Excellent Positioning System
Ultra Slim And Light Weight!
Size: 500x500x81.5mm, weight: 8.5kg/pc. Strong cabinets are made with enough die-casting aluminum material.
Modular Design!
Easy to do the maintenance from the front and backside.
Safety Protection At The Corner!
Protect the LED lamp at the corner during shipping and moving.
Safety Lock At The Back Of The Module!
The module with magnetic design, easy to do the front maintenance. Safety lock at the back of the module to protect the module well.

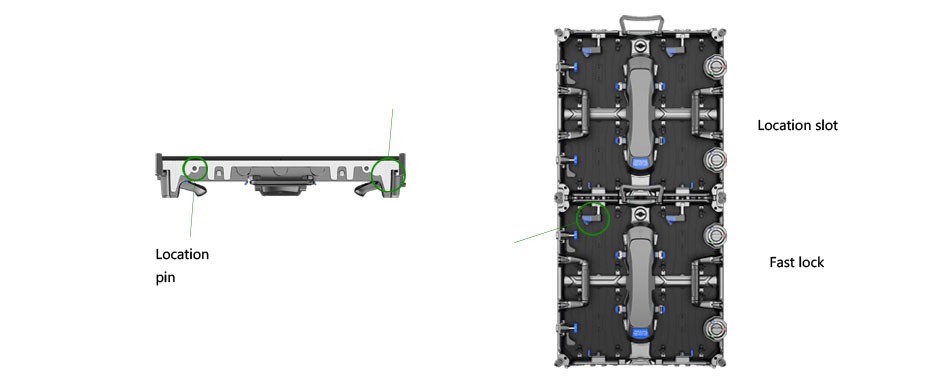

Excellent Positioning System!
Perfect design fast lock, location pin, location slot.
Flat Version Cabinet With Fast Lock!
The simple but strong flat version’s fast lock guarantees the screen has a good flatness.
Easy To Connect Up And Down Cabinet With Fast Lock!
The up-and-down cabinets are easy to connect with the fast locks.
Easy For Two Cabinets Connection!
The CNC technology at the edge guarantees a seamless connection. The fast lock ensures easy to connect the cabinets.
Strong Cabinet Design To Build A Big Video Wall!
Enough die-casting aluminum material to make the cabinet. And the strong cabinet structure easy to build a big video wall.
Easy Using Curved Lock!
-5°, -2.5°, 0°, 2.5°, 5° available for the curved lock.
Inner Curved And Outer Curved Available!
The curved lock design achieves inner and outer curved or round shapes for some special visual effect projects.
Aging Test!
The aging test guarantees the quality and visual effect of the rental LED display.
Install for Show, Event, Conert, Live House…
DHL series is a popular rental LED display screen solution which suitable to be used for different shows, events, concerts, music live, carnivals, campaigns…wherever opening space with events needed.
| Specification | ||||
| Model No. | DV2.6 | DV3.9 | DVO3.9 | DVO4.8 |
| Pixel Pitch | 2.6mm | 3.9mm | 3.9mm | 4.8mm |
| LED Type | SMD2020 | SMD2020 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | |||
| Size of module(W*H) | 250mmx250mm | |||
| Resolution of module(W*H) | 96×96 | 64×64 | 64×64 | 52×52 |
| Density | 147456dots/㎡ | 65536dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | |||
| Size of cabinet(W*H) | 500mmx500mm | |||
| Weight of cabinet | 8.5KG | |||
| Best viewing distance | >2.6m | >4m | >4m | >5m |
| Best viewing angle | 140° | |||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/32 scanning | 1/16 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP grade | IP31 | IP31 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
